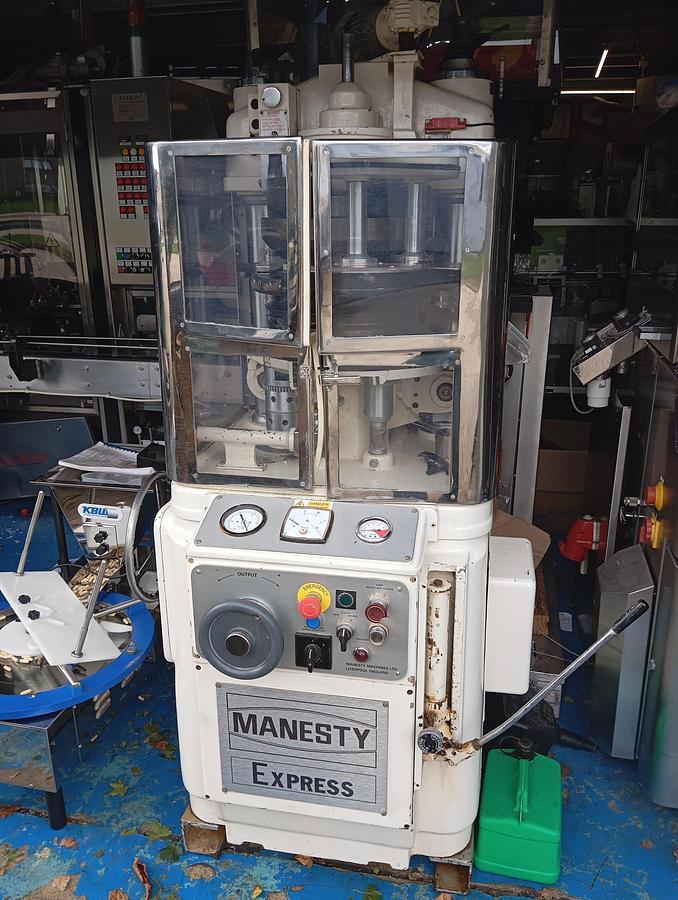

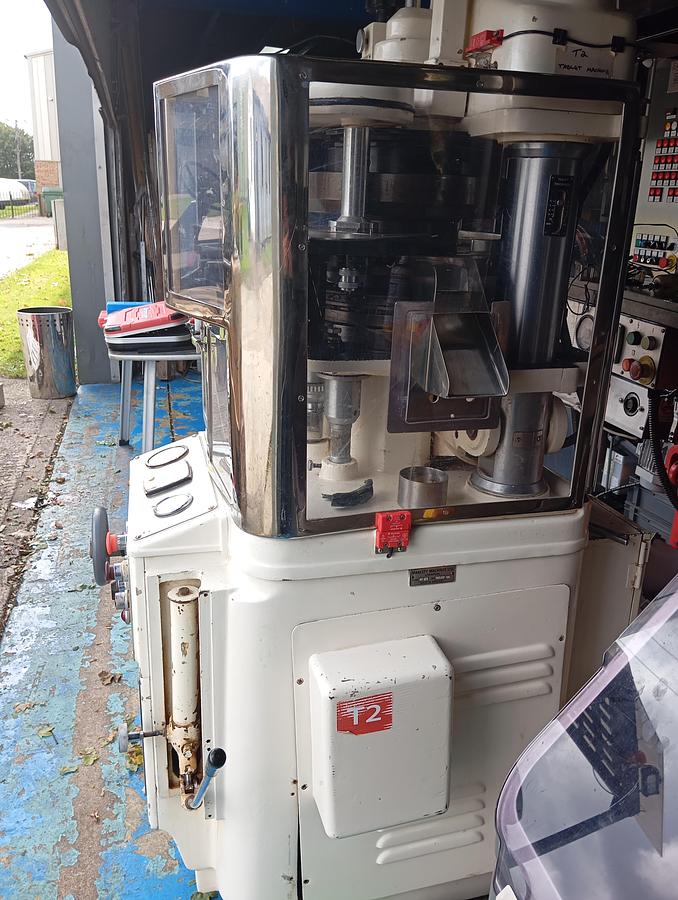

Name: Manesty express 30
Brand: Manesty
SKU: 00085
Availability: InStock

Just In

Pre-compression: The press is equipped with a standard pre-compression system, which helps to de-aerate the granules, resulting in stronger tablets with a lower chance of capping or lamination.
Rotary feeder: It uses a powered rotary feeder to ensure a consistent and uniform flow of granules into the dies.
Compression zone: The compression area is protected to ensure operation cleanliness by minimizing the accumulation of powder.
Safety features: It includes safety-interlocked guarding for operator protection.
Number of stations: 30 stations
Tooling type:B punch BB dies
Production speed: Up to 3,000 tablets per minute, or 180,000 tablets per hour
Maximum compression force:Main compression: 6.5 tons
Pre-compression: 1 ton
Tablet specifications:Maximum diameter: 7/16" (approx. 11.1 mm)
Maximum depth of fill: 11/16" (approx. 17.4 mm)

Manesty express 30
